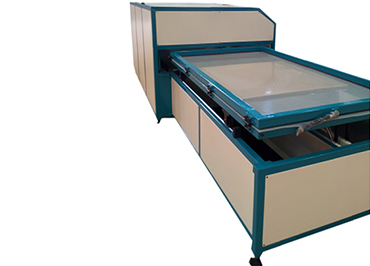

VACUUM MEMBRANE PRESS

FEATURES :

This machine has 2 work table, Run is operated manually. The working plate is fixed while the heating cabinet is movable .
The vacuum is measured with vacuometer automatically. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.

Description	Parameter
X,Y,Z Working Area	1300x2500x300mm
Table Size	1320x3040mm
X,Y,Z Traveling Positioning Accuracy	0.05/300mm
X,Y,Z Repositioning Positioning Accuracy	0.05mm
Table Surface	T-slot table (Option:bakelite Vacuum table)
Frame	Welded structure
X, Y Structure	Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure	25mm thick Ball Screw, Hiwin Rail Linear Bearings
Max.Power Consumption	(Without spindle) 3.0Kw
Max.Rapid Travel Rate	37000mm/min
Max.Working Speed	37m/min
Spindle Power Motor	3.0Kw water cooling. Spindle
Spindle Speed	0-24000RPM
Drive Motors	Servo
Working Voltage	AC220V/50/60Hz,3PH (Option: 380V)
Command Language	G Code
Operating System	N.C STUDIO Option D.S.P Handle
Flash Memory	128M(U Disk) D.S.P
Collet	Er20
X,Y Resolution	<0.02mm
Running Environment Temperature	Relative humidity: 30%75%
Gross Weight	1200KG
