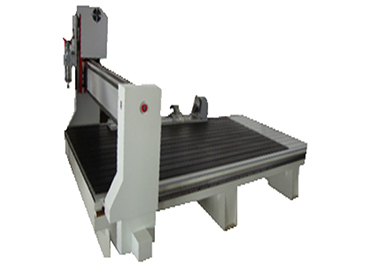

Wood processing of various furniture such as doors, windows, cabinets, craft, advertisement, engraving and cutting various labels, mementos and number plate


  • Whole machine is welded with seamless steel structure.
  • The stability is excellent, not easy to be deformed well compatibility.
  • CAD/CAM designing software e.g. type 3 / castmate / wentai etc.,
  • Adopting water cooling system. It can provide good cooling effect when carving finity materials.
  • Advanced design of the machine make sure strong cutting and guarantee the engraving precision.
Description Parameter
X,Y,Z Working Area 1300x2500x300mm
Table Size 1320x3040mm
X,Y,Z Traveling Positioning Accuracy 0.05/300mm
X,Y,Z Repositioning Positioning Accuracy 0.05mm
Table Surface T-slot table (Option:bakelite Vacuum table)
Frame Welded structure
X, Y Structure Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure 25mm thick Ball Screw, Hiwin Rail Linear Bearings
Max.Power Consumption (Without spindle) 3.0Kw
Max.Rapid Travel Rate 37000mm/min
Max.Working Speed 37m/min
Spindle Power Motor 3.0Kw water cooling. Spindle
Spindle Speed 0-24000RPM
Drive Motors Servo
Working Voltage AC220V/50/60Hz,3PH (Option: 380V)
Command Language G Code
Operating System N.C STUDIO Option D.S.P Handle
Flash Memory 128M(U Disk) D.S.P
Collet Er20
X,Y Resolution <0.02mm
Running Environment Temperature Relative humidity: 30%75%
Gross Weight 1200KG
