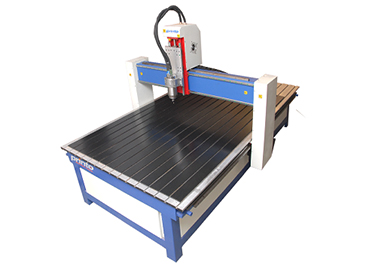

Wood processing of various furniture such as doors, windows, cabinets, craft, advertisement : engraving and cutting various labels, memontos and number plate.

Description Parameter
X,Y,Z Working Area 1300x2500x300mm
Table Size 1320x3040mm
X,Y,Z Traveling Positioning Accuracy 0.05/300mm
X,Y,Z Repositioning Positioning Accuracy 0.05mm
Table Surface T-slot table (Option : Vacuum table)
Frame Welded structure
X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure 25mm thick Ball Screw, Hiwin Rail Linear Bearings
Max.Power Consumption (Without spindle) 3.0Kw
Max.Rapid Travel Rate 37000mm/min
Max.Working Speed 37m/min
Spindle Power Motor 3.0Kw water cooling. Spindle
Spindle Speed 0-24000RPM
Drive Motors Stepper motors
Working Voltage AC220V/50/60Hz,3PH (Option: 380V)
Command Language G Code
Operating System N.C STUDIO Option : D.S.P Handle
Flash Memory 128M(U Disk)
Collet Er20
X,Y Resolution <0.02mm
Running Environment Temperature Relative humidity: 30%75%
Gross Weight 1200KG
