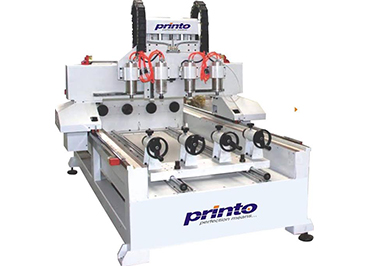

  • Four axis machines, with 4 rotary, every one's max working diameter is 200mm, max. working length is 1500mm. With flat table, so flat working available also.
  • Well compatibility: CAD/CAM designing software e.g. Type 3 Has the function of re-carving after break point and power failure.
  • Adopting NC studio system, which is convenient for operation.
  • It is mainly for 3D or complicate work pieces, like Buddha statue, sculpture, sofa legs, balustrade etc.
Description Parameter
Max. Working Diameter              200mm
Max. Working Length 1500mm
Flat working size for each head 200x1500mm
Frame Structure Seamless welded steel, better than cast iron
X,Y Drive Rack and pinion transmission, Taiwan HIWIN square guide rail
Z Drive Germany rolling ball screw, Taiwan HIWIN square guide rail
Drive Motor Stepper
Max. Running Speed 35m/min
Spindle 2.2KW water cooling  or 3.5KW air cooling italy
Spindle Speed 0-24000 rpm, variable speed
Diameter Range of Cutter 3.175 - 12.7mm
Command G code
Operating System Origin NC studio
Resolution 0.01mm
Work-holding By clamp
Working Voltage AC220/50Hz/1Ph
Net Weight +1200KG
