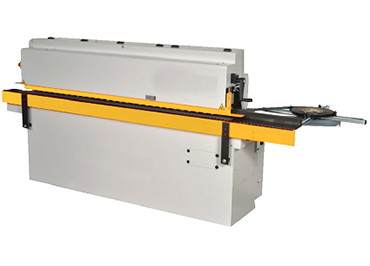

  • Automatic pneumatic shear for coil cut Powered and automatic edge feeding at work piece infield.
  • Electric control panel positioned on the front side to facilitate use in any working condition.
  • Panel movement system by means of top powered feeder, reliable toothed belt Machine base made of steel: stable and rigid, keeping the adjustments Front telescopic support with roller conveyor for bigger work piece Glue temperature electronic control with digital read-out Friction free work table with six rollers. Easy adjustment of trimming and buffing units.


  • Reliability : The machining precision is guaranteed by the upper feeding belt and by the entry guide with micro metric adjustment according to the edging thickness.
  • Sturdiness : The gluing unit includes the shear for cutting the edging, a 1,4 Kg capacity glue pot with and 3 pressure rollers. Electronic temperature adjustment.
Description Parameter
Work piece thickness range             11-45 mm
Minimum work piece width 90 mm
Minimum work piece length 180 mm
Edge banding thickness - rolled edges 0.4 - 3 mm
Work piece feed 6 m/min
Trimming motor power 0.37 kW
Trimming cutter speed 11000 rpm
Buffing wheel speed 1400 rpm
Total power 2.75 kW
Worktable size (with extensions) 1950 x 180 (530) mm
Worktable height 904 mm
Min./Max. edge thickness 0 - 4/2 mm
Min./Max. panel working thickness 12/50 mm
Min. workable panel length/width           190/65 mm
Feed speed 6 m/min
